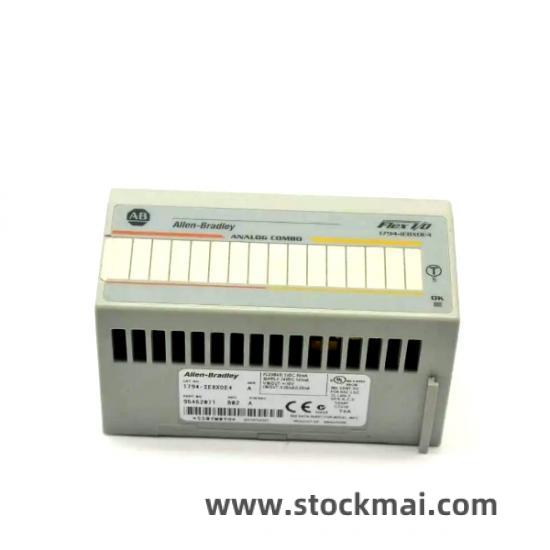

Key Parameters

• I/O Configuration: 8 Analog Inputs + 4 Analog Outputs
• Input Range: 0-20mA / 4-20mA (Switchable)
• Output Capability: 0-20mA / 4-20mA / ±10VDC
• Resolution: 16-bit (Inputs & Outputs)
• Isolation: 1500V AC Channel-to-Bus
• Update Rate: 10ms per Channel
• Power Requirements: 12-24VDC ±10%
• Operating Temp: -40°C to +70°C

Industrial Applications

• Process variable monitoring (Pressure/Flow/Temperature)
• Closed-loop control systems
• Analog signal conditioning
• SCADA system integration
• Batch process control
• Equipment health monitoring

Technical Highlights

✓ High-Density Design: Combines 12 I/O points in single-slot configuration
✓ Smart Configuration: Software-selectable ranges via RSLogix 5000
✓ Diagnostic Features: Open wire detection, over-range alarms
✓ Hot-Swappable: Supports module replacement without system shutdown
