Technical Specifications

• Manufacturer: Allen-Bradley (Rockwell Automation)

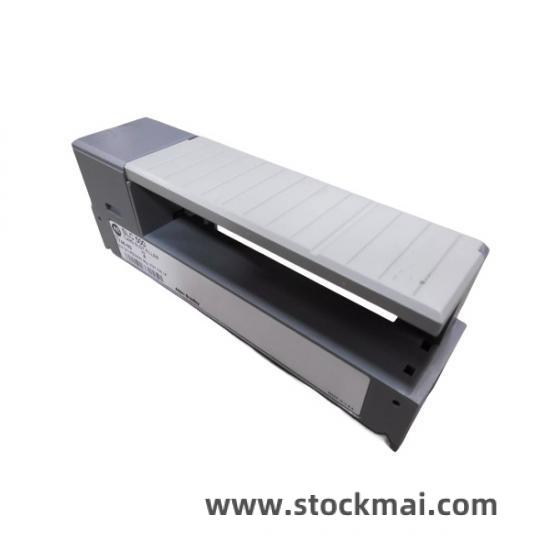

• Model: 1746-N2
• Type: Digital Input Module
• Channels: 16 isolated inputs
• Voltage Rating: 24V DC (10-30V DC range)
• Current Consumption: 85mA @ 5V DC, 10mA @ 24V DC
• Response Time: ≤ 1ms
• Isolation Voltage: 1500V AC RMS
• Operating Temperature: -25°C to +60°C
• Certifications: CE, UL, cULus, ATEX (Zone 2)

Key Features & Benefits

• High-density 16-channel design saves cabinet space
• Optical isolation for noise immunity in harsh environments
• LED status indicators for each channel
• Compatible with SLC 500 PLC systems
• Supports both sinking and sourcing configurations

Typical Applications

• Machine status monitoring in automotive assembly
• Conveyor control systems in material handling
• Safety interlock systems in chemical plants
• Packaging machinery control
• Energy management systems
