Product Specifications

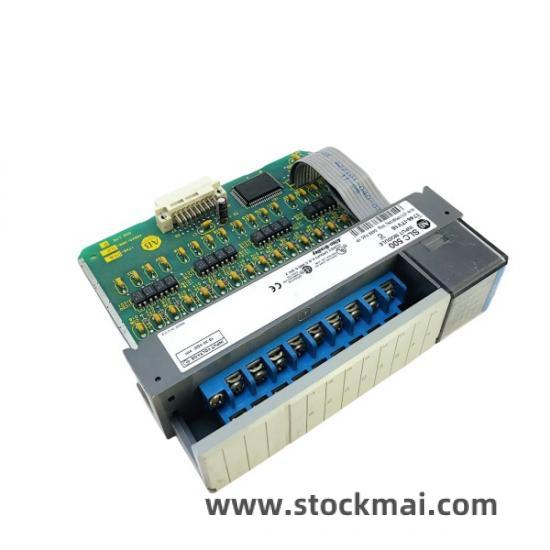

• Model: 1746-ITV16
• Manufacturer: Allen Bradley (Rockwell Automation)
• Type: 16-Channel Analog Voltage Input Module
• Input Range: ±10 VDC / 0-10 VDC (Configurable)
• Resolution: 16-bit
• Isolation: 500 VDC Channel-to-Backplane
• Sampling Rate: 1ms per Channel
• Operating Temperature: 0°C to 60°C
• Backplane Current: 270 mA @ 5V DC
• Certifications: CE, UL, ATEX Zone 2

Key Features

• High-speed data acquisition with 16-bit precision
• Built-in signal conditioning for noisy environments
• LED status indicators for channel diagnostics
• Hot-swappable design for maintenance without downtime
• Compatible with SLC 500 series PLCs

Typical Applications

• Process variable monitoring in chemical plants
• Production line quality control systems
• Energy management systems in power plants
• Environmental monitoring equipment
• Robotic system feedback control

⚠️ Installation Notes

• Use shielded cables for analog signal transmission
• Maintain minimum 50mm spacing from high-voltage components
• Configure input range via Rockwell RSLogix software
• Implement proper grounding to prevent EMI

Cynosure Tech Automation Advantage

We provide:

• 1-year warranty with technical support
• Global shipping via DHL/UPS/FedEx (3-5 business days)
• OEM packaging with complete documentation
• Custom procurement for obsolete components
