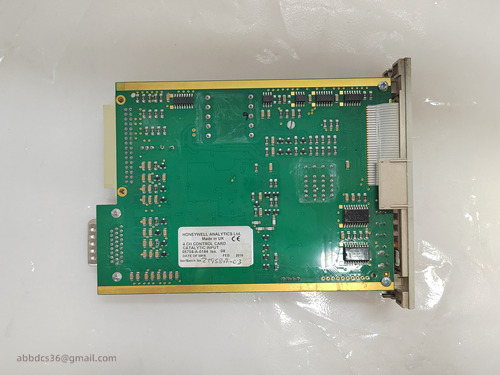

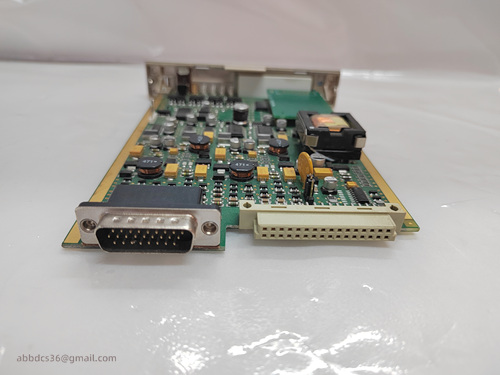

HONEYWELL 05704-A-0144 Four Channel Control Card
1、 Product Overview

Honeywell 05704-A-0144 is a functional module used in Honeywell TDC 2000/TDC 3000 and System 57 control systems.
It is a Four Channel Control Card, mainly used for precise closed-loop adjustment and execution of analog or digital signals in process control.
The card can provide multiple control functions on the same module, improve the signal processing capacity of the rack, and is suitable for large-scale distributed control system (DCS).

2、 Technical parameters

Number of channels: 4 independent control channels

Input/output type: Supports analog and digital quantities (depending on configuration)

Control function:

Closed loop control (PID algorithm, etc.)

Multi channel parallel adjustment

Signal acquisition and computation

Installation method: Plug in card, installed in the system rack (subrack)

Power requirements: Powered by the rack backplane, with a typical input of 24V DC power (distributed uniformly by the power module)

Protection functions: overcurrent and overvoltage protection, channel isolation, LED status indication

3、 Application scenarios

process control

Closed loop control of process variables such as temperature, pressure, flow rate, and liquid level

Suitable for continuous process industries such as petrochemicals, electricity, papermaking, and metallurgy

Multi channel parallel application

Single card can achieve 4-channel independent circuit control, improving rack space utilization

Can operate in conjunction with input/output cards, communication cards, and engineering control cards

DCS system expansion

As a functional module in the system rack, it is used to expand the number of control circuits

Cooperate with system software for parameter configuration and configuration

4、 Product advantages

High integration: A single card integrates four control circuits, reducing the number of modules

Strong flexibility: supports different types of signal input and control algorithms

High reliability: Industrial grade design with channel isolation and protection functions

System compatibility: seamless integration with Honeywell TDC/System 57 platform

Easy maintenance: Plug in design, supports online replacement and modular maintenance

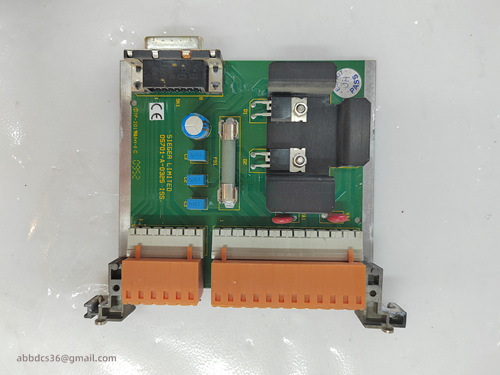

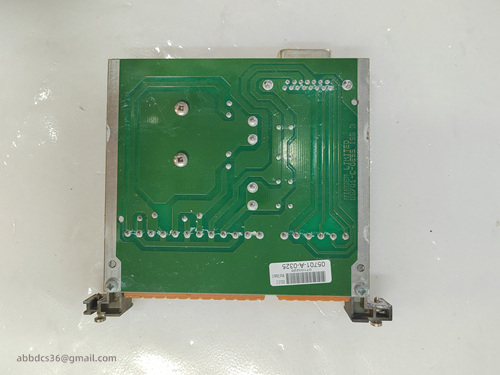

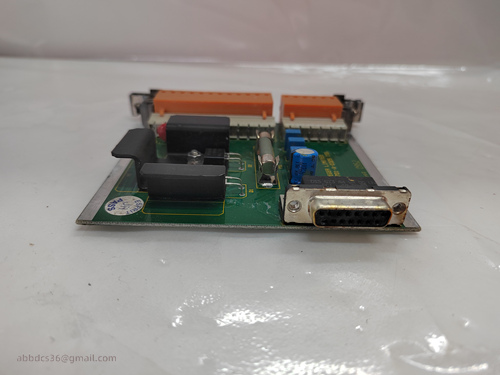

HONEYWELL 05701-A-0325 communication module (more accurately: DC input card)
1、 Product Overview

Honeywell 05701-A-0325 is a functional module applied to distributed control systems such as System 57, commonly referred to as a communication module, but in terms of actual functional positioning, it is mainly a DC input card.
Its function is to introduce an external 24V DC power supply into the rack backplane, providing power support for other functional modules in the system.
This module has power protection, signal isolation, and interface compatibility, and is also classified as an “engineering control/communication interface module” in some materials.

2、 Technical parameters

Input voltage: 24V DC

Function protection:

fuse protection

reverse polarity protection

EMI/RFI interference filtering

Structural features:

Adopting detachable two-stage terminal blocks for easy wiring and maintenance

Card insertion installation, supports use with System 57 subracks

Interface: The power input terminal is the main one, and some versions have status indicator LEDs

3、 Application scenarios

Power input management

Used to input on-site DC power into the system rack and allocate it uniformly to the controller card, communication card, and signal processing card.

Industrial automation system

As a system power interface module in process control, energy, petrochemical, metallurgical and other applications.

System communication and configuration support

In some configurations, this module works in conjunction with the engineering control card to provide users with configuration interfaces (such as serial ports, indicator light status, communication debugging functions).

4、 Product advantages

Safe and reliable: Equipped with built-in fuses and reverse polarity protection, ensuring stable power input.

Easy to maintain: The detachable terminal block design supports non-stop replacement of wiring.

Strong electromagnetic compatibility: equipped with EMI/RFI filtering, suitable for complex industrial environments.

Good system adaptability: seamlessly integrates with Honeywell System 57 and related rack systems.
